| Fixed-focal Lenses | ||||||||
| No. | Model |
Focal length
(mm)
|
Format | Mount |
Aperture
(F/#)
|
F.O.V
(H*V*D)
|
Resolution |
Dimension
(mm)
|
| 1 | UN-UW028022C-2MP | 2.8 | 1/2.7" | M12 | 2.2 | 123.9°*65.3°*150.1° | 2MP | φ14.0*L16.45 |
| 2 | UN-UW036022C-3MP | 3.6 | 1/2.7" | M12 | 2.2 | 95.6°*67.5°*130° | 3MP | φ14.0*L16.85 |
| 3 | UN-UW42C-5MP | 4 | 1/2.7" | M12 | 2.0 | 84°*46°*96° | 5MP | φ14.0*L16.40 |
| 4 | UN-UW62C-5MP | 6 | 1/2.5" | M12 | 2.0 | 58.8°*38.5°*70° | 5MP | φ14.0*L17.,00 |

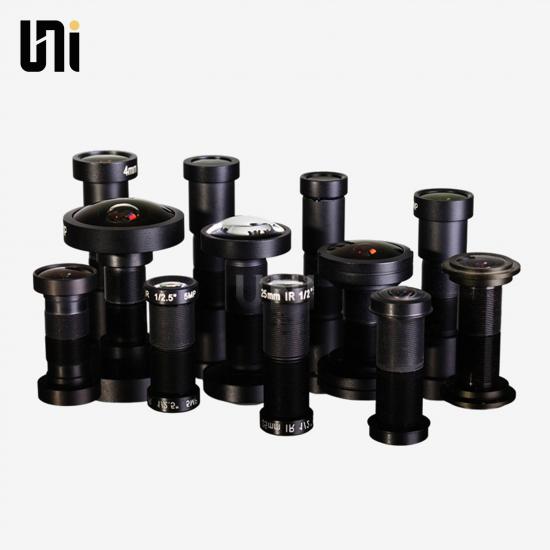

| 5 | UN-UW82C-5MP | 8 | 1/2.5" | M12 | 2.0 | 44.2°*25°*50° | 5MP | φ14.0*L16.7 |
| 6 | UN-UW122C-5MP | 12 | 1/2.5" | M12 | 2.0 | 28°*21°*35° | 5MP | φ14.0*L18.78 |
| 7 | UN-UW162C-5MP | 16 | 1/2.5" | M12 | 2.0 | 22.8°*17.1°*28.5° | 5MP | φ14.0*L18.16 |
| 8 | UN-UW252C-5MP | 25 | 1/2" | M12 | 2.0 | 14.7°*11.1°*18.3° | 5MP | φ14.0*L19.42 |
| 9 | UN-UW35028C-5MP | 35 | 1/1.8" | M12 | 2.8 | 11.2°*10°*15.6° | 5MP | φ22.0*L29.52 |
| 10 | UN-UW50028C-5MP | 50 | 2/3" | M12 | 2.8 | 6.5°*5.27°*10° | 5MP | φ22.0*L32.20 |
| 11 | UN-UW70035C-8MP | 70 | 1/1.8" | M12 | 3.5 | 6.25°*3.53°*7.19° | 8MP | φ29.0*L67.8 |
